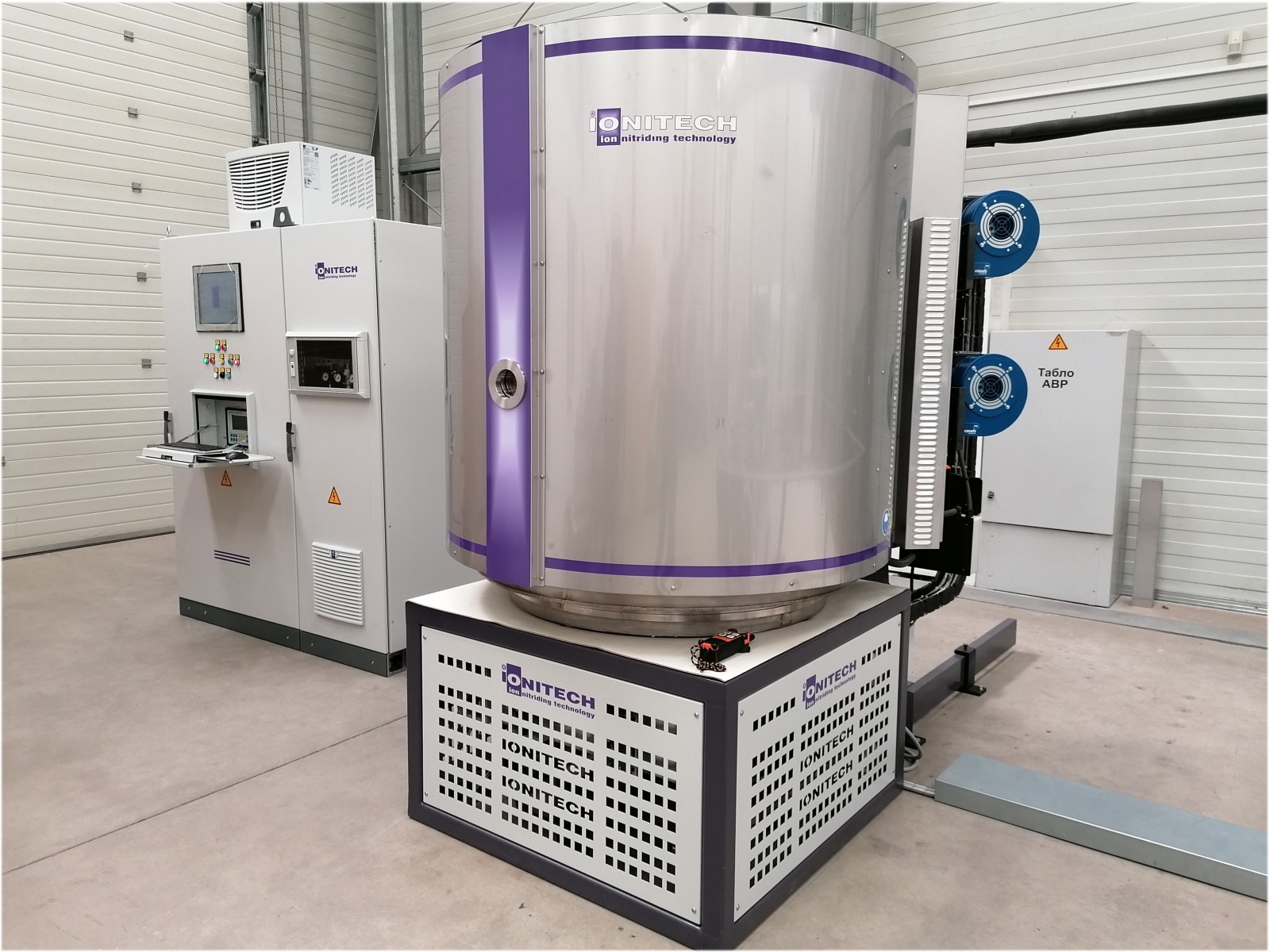

Ionitech’s Hot-Wall Ion/Plasma Nitriding and Ferritic Nitrocarburising Equipment

In the Hot-Wall type ion/plasma nitriding furnaces, the heating of the parts in the vacuum chamber is done by both heaters and pulsed plasma. These types of furnaces are especially suitable for nitriding different shaped and sized parts in one batch. The main advantages of this type of equipment are:

•    The furnaces fully comply with the AEROSPACE MATERIAL SPECIFICATION - AMS 2759/8A
•    Can plasma nitride parts for the aerospace industries
•    Absolute temperature uniformity in all parts
•    The chambers could be equipped with their own lifting mechanism

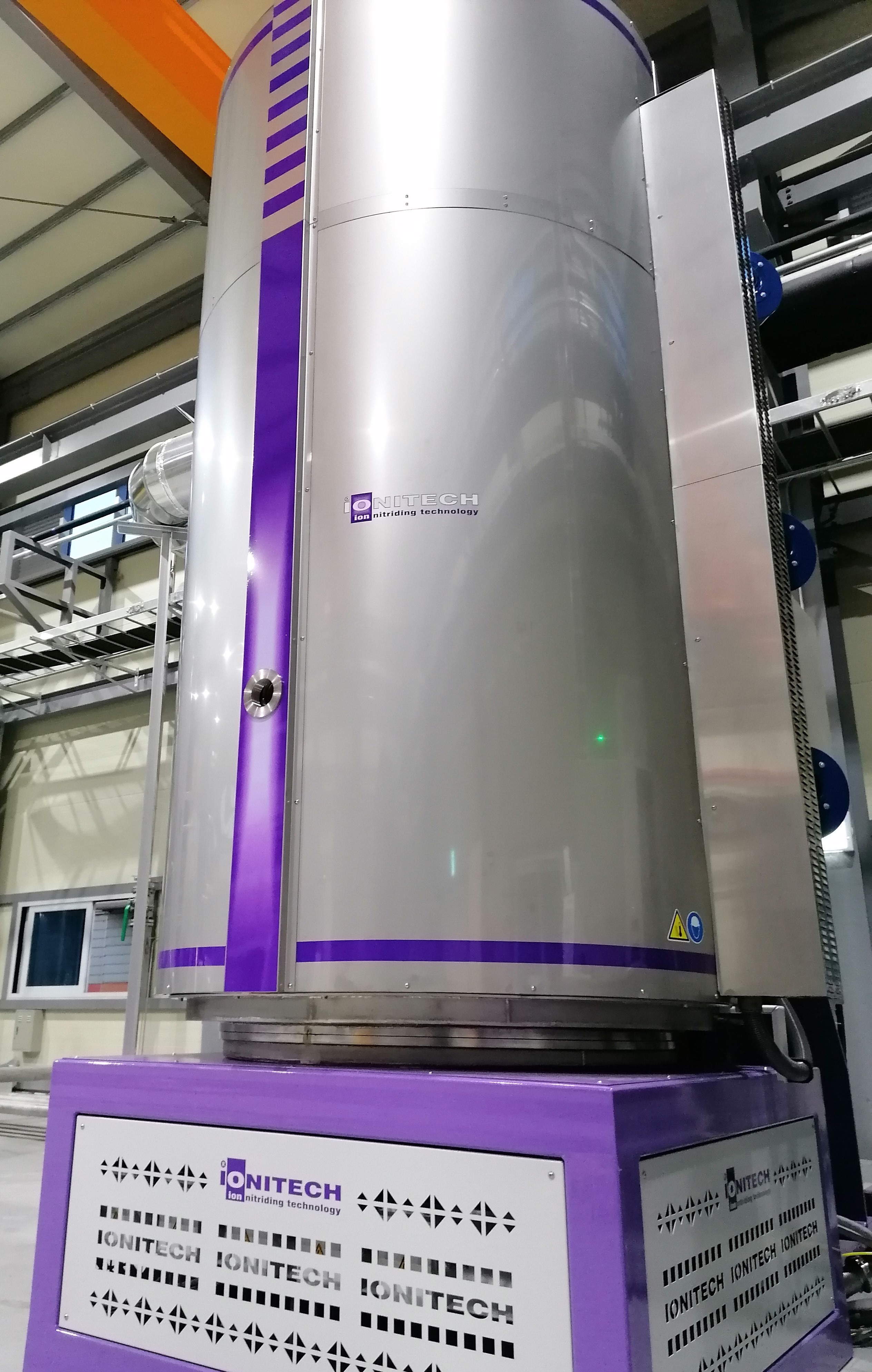

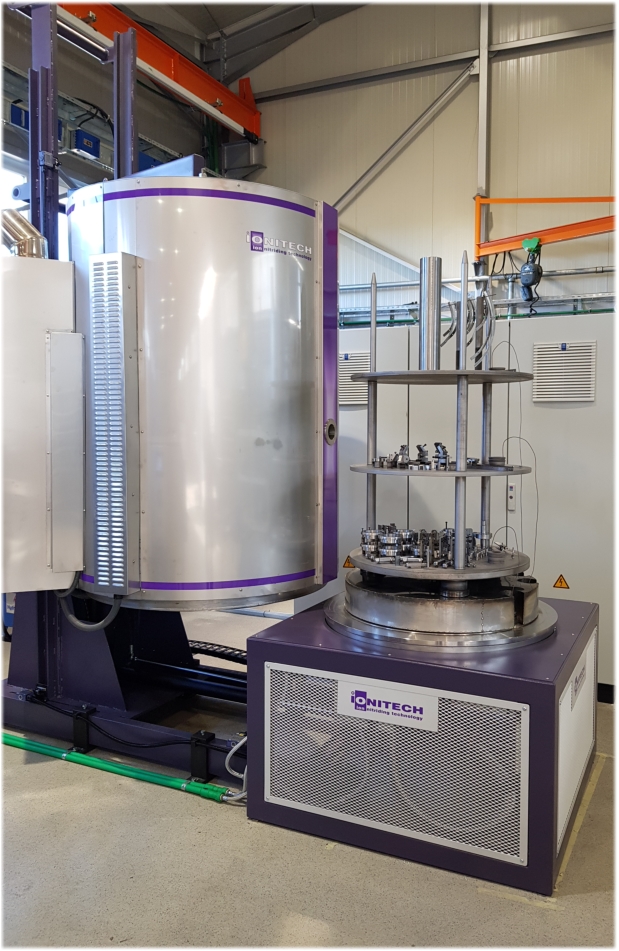

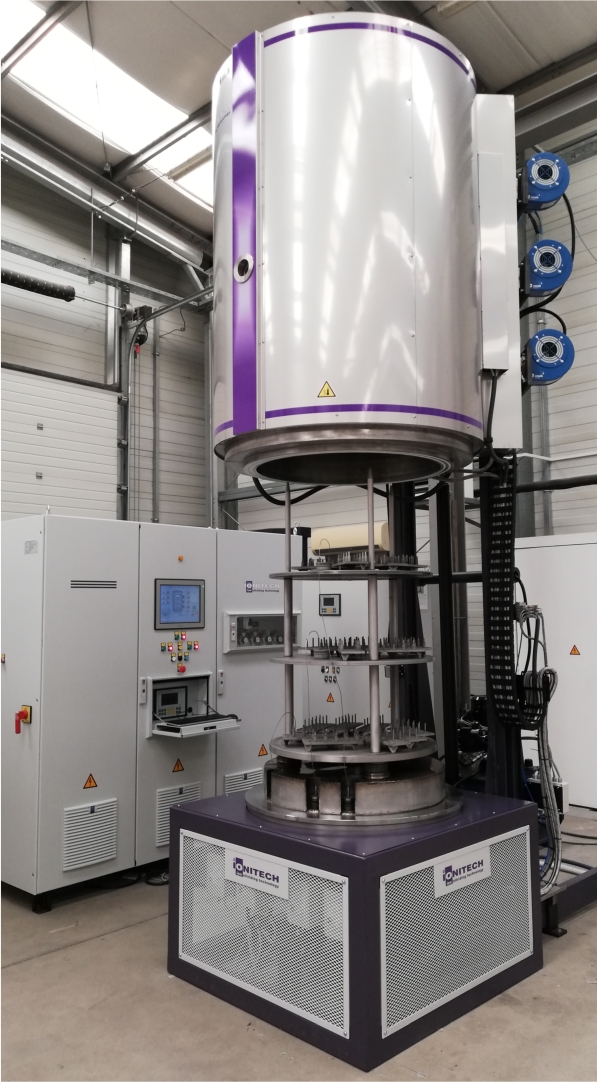

The vacuum chambers are manufactured from stainless steel. Depending on their size they have 2, 3, or 4 separate zones of heating and cooling. The parts are loaded on metal plates. These plates lie on support insulators, and are connected to the cathode of the plasma generator. The process of plasma nitriding could be viewed through a sight glass. The temperature during the process is measured directly in the parts using one or two K-type thermocouples per heating/cooling zone.

The plasma generator has a specially developed safety mechanism to protect the tools and parts.
The gas vacuum system evacuates the chamber and fills them with treatment gases.
The process is carried out either with a mixture of hydrogen and nitrogen or with ammonia gas. Propane or natural gas are used for nitrocarburising. After the end of the treatment, the chambers can be filled with argon for accelerated cooling.

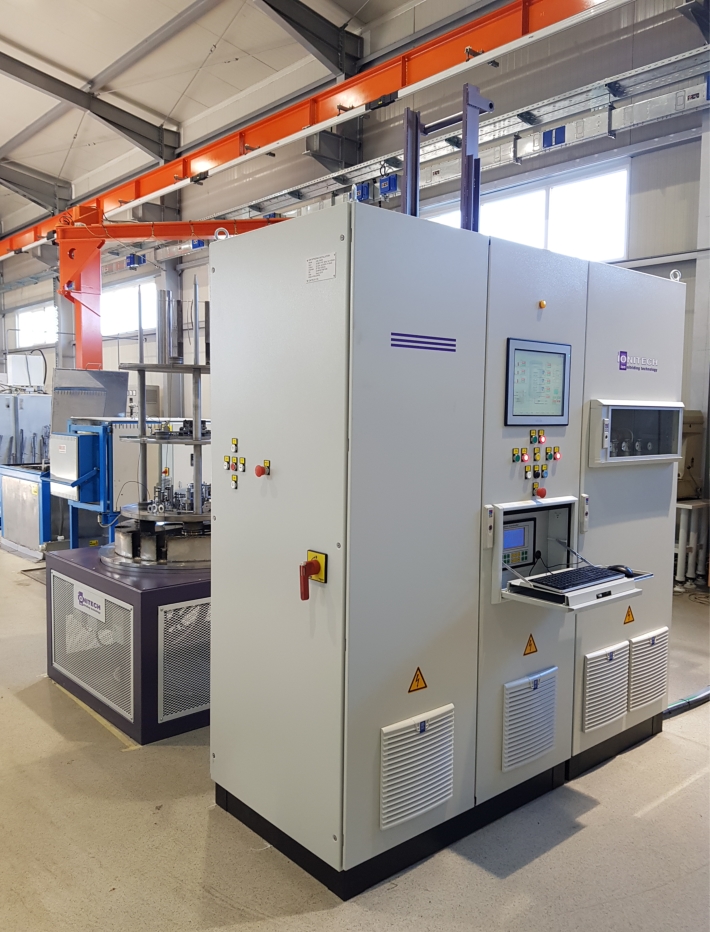

The control system consists of a PC controller, main system controller and subsystems (transmitters and drivers) that are connected in a communication network. The Panel PC is equipped with a 15” touchscreen display and uses Windows operating system.

The technological process is completely automatic. All the main parameters are controlled by the system controller:

•    Pressure in the working chamber
•    Temperature of the processed parts
•    Heat rate
•    Ratio and consumption of working gases
•    Process time length
•    Pulsed Plasma Current
•    Frequency of pulses
•    Duty-cycle of pulses
•    Temperature of cooling water

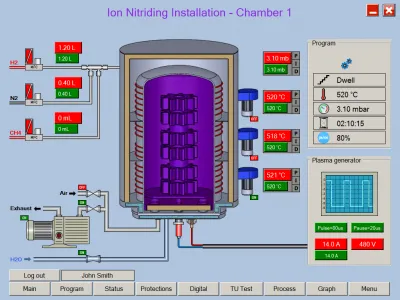

Our specifically designed application, IonView, implements the operator interface of the ion nitriding installation. It has the following capabilities:

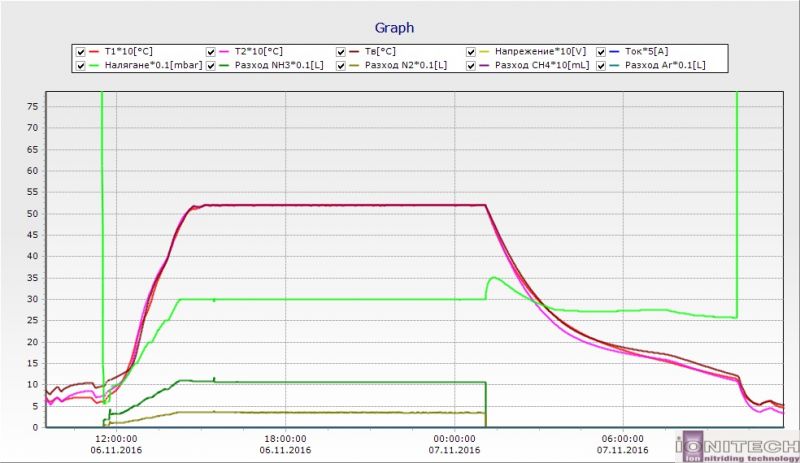

•    Visualization of the technological process parameters
•  Review and editing of technological programs, even while the installation is working
•    Archive of the technological processes
•    Remote access to the archive
•    Visualization of the alarms
•    Alarm notification through e-mail and SMS-message
•  Possibility to send process data to Ionitech as attached zip-file through email.

•    Input voltage: 3x400V( 480V ) +10%/-15%, 50Hz ( 60 Hz )

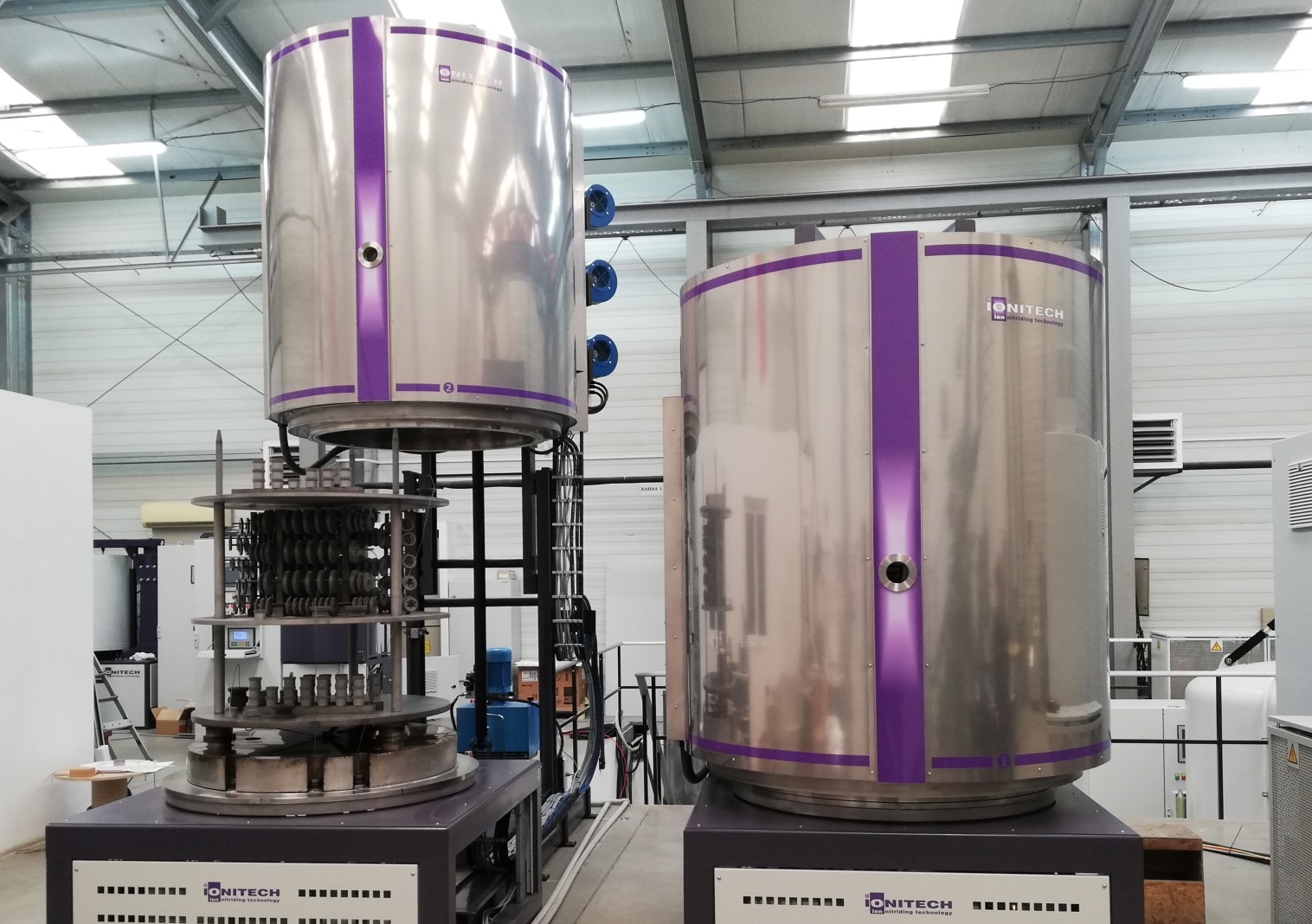

•    All installation models could be equipped with two chambers working separately - learn more about Ionitech's Double-Chamber System for no loss in technological time
•    Working gases: ammonia, nitrogen, hydrogen, propane, methane
•    Cooling gases: nitrogen, argon
•    Working pressure: 1 - 8 mbar
•    Time for manufacturing, 6 - 10 months (depending on the model).

If you have any further questions about our Hot-Wall equipment, please, don't hesitate to write to us: office@ionitech.com
